KHD-H1616
페이지 정보
3,618 2016.09.08 10:48
첨부파일
본문
-
- E-Map Two-Way Audio
- High Quality Recording Resolution
- Video Codec
(H.264) - Simultaneous Display & Playback
- Smart Phone Support
- DDNS Support
Feature
- CIF, 2CIF, 4CIF, 1280x720(720p), 1920x1080(1080p) HD-SDI Video Input Support at the same time.
- High Resolution Real-time display & Recording at 1280x720, 1920x1080
- Support H.264 Video Codec
- Multi channel display
- Pentaplex (Live monitoring, Recording, Search, Network transmission & Backup)
- Convenient Remote Monitoring, Playback, Backup & Setup through Network
- E-Map, DDNS and smart HDD monitoring
- Various language support(Korean,English,Chinese,Japan,Russian,Spanish)
- Remote Monitoring by CMS
Main Functions
- Quick, Panorama, smart Search, Digital zoom at live and search, snapshot and bookmark.
- Various Kinds of 1.3M, 2M, 5M, 8M, 12M pixel IP camera simultaneously ( Option )
- PTZ Auto Touring scheduling & Privacy masking
- PTZ (Pan/Tilt/Zoom/Focus/Iris/Auto panning/preset) by RS-232, RS-485 and network.
- VDB & AVI,MP4, JPG, BMP, PNG Backup, Real-time network backup, massive NAS backup
- Schedule, Continuous, Motion, Sensor, Motion and Sensor recording mode support
- Various kinds of Data Backup Devices (CD, DVD-RW & USB 2.0 port supported)
- Powerful Event log information search (status search by each system, network, event & user )
- Various screen division mode, display & TV-OUT Rotation, OSD(On Screen Display) support
- Channel screen covert and channel swapping
- Emergency Recording & Event Notification
Specification
| Model | KHD – H1616 |
|---|---|
| CPU | Above I5 3GHz |
| HDD | 1TB , Max 6 HDD (5xHDD + DVD-RW) |
| Analog output | SPOT( RCA ) |
| O / S | Windows 7 |
| Video Input | 16 Channel |
| Video Output | RGB(VGA), HDMI |
| HD-SDI Channel No. | 16 (Selection) |
| Analog Channel No. | 16 (Selection) |
| Audio input / output | 16 / 1 ( Option) |
| Back up | CD-RW, DVD-RW, USB HDD, USB CD-RW |
| Screen division | 1 / 4 / 6 / 8 / 9 / 10 / 13 / 16 Auto Rotation |
| Display | Analog : Live , HD-SDI is the same as the Max. HD-SDI recording rates |
| Recording speed (fps) (NTSC / PAL) | 480 / 400 |
| HD-SDI recording speed (fps), 720p / 1080p : NTSC, 720p : 1080p : PAL | 480 / 240, 400 / 200 |
| Recording Resolution | 704 X 480 , 704 X 240, 352 X 240,704x576, 704x288, 352x288, 1280x720, 1920x1080 |
| Compression | H.264 ( High Profile) |
| Recording mode | Scheduled / Continuous / Motion Detection / Sensor / Sensor & Motion Detection |
| Sensor / Alarm | 16 / 16 |
| PTZ control & port | PAN / TILT / ZOOM / FOCUS / AUX Control / LIGHT Control |
| Remote Transmission | Live Monitoring, Playback, File Saving and Event Notification |
| Remote control | PTZ Control, Emergency Recording and Sensor In / Out |
| Network | 10/100/1000 BASE TX ETHERNET |
| Storage Temp / Humidity | -20 ~ 60`C / 20 ~ 95 % RH |
| Operating Temp/ Humidity | -5 ~ 40`C / 20 ~ 80 % RH |
| Power | AC100~200V 2A / AC200~240V, 50/60HZ |
| Size / Weight | 440mm(w)x175mm(H)x500mm(D) / 15kg |

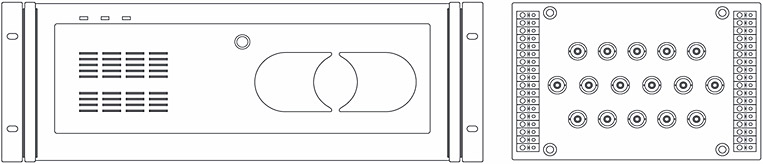

제품 모델에 따라 후면 입출력 단자는 다를 수 있습니다.
